EDA, Metrology Viewer, Infinity QS SPC number

From mestsa003.infineon.com(eaf-dev.mes.infineon.com) using your normal or MES account open the following application

"C:\Program Files\NPortAdminSuite\bin\npadmer.exe" if not found in start menu (NPort Administrator)

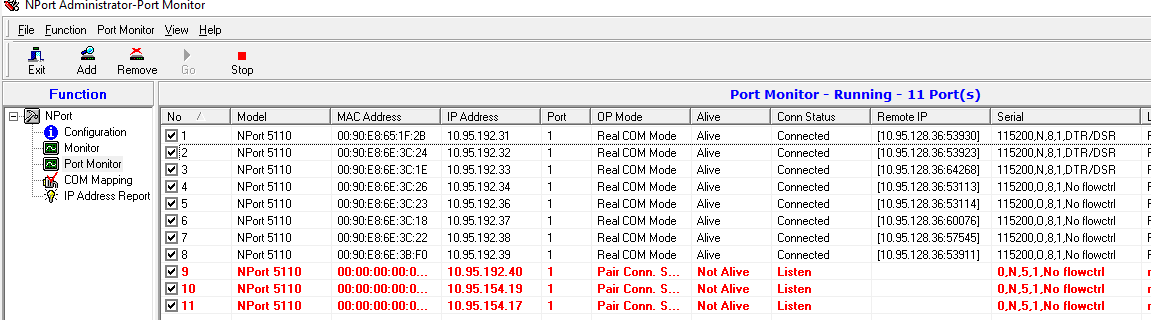

Select Port Monitor - Right click anywhere in the right pane - select load configuration com port - press go button from top ribbon

Look at entries starting with IP 10.95.192.* for conn status not Connected and then

Find entry with not connected under cond status

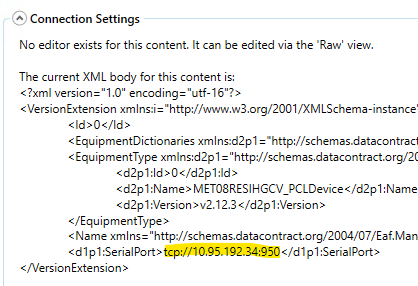

- Find matching EAF CI instance and verifying connection name "PCLDevice" with matching IP in connection settings example shown below
- Stop CI in EAF
Using browser (Edge) navigate to http matching ip (this will bring up Moxa website like a home router) password is in shared KeePass
- Restart nPort device by using website
Start EAF again
If not on phone with user wait for data for about five minutes if nothing repeat one more time
If still no data stop EAF like above

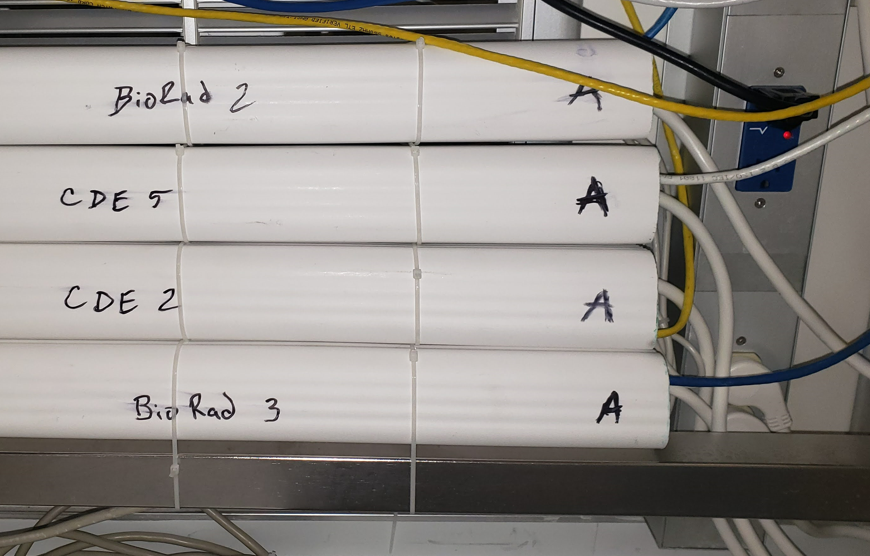

Call lead and have them power cycle the nPort
Start EAF and check for data in file share \messv02ecc1.ec.local\EC_Characterization_Si\RawData base on folder date modified
